Steel making by Induction Furnace

Though induction melting furnaces are being used since a long term, the production of mild steel by the induction furnace is relatively a very common phenomenon. Induction furnaces work on the principle of electromagnetic induction which was discovered by Michael Faraday.

History In 1870 De Ferranti started experiments in Europe on induction furnaces. The first induction furnace for melting metals was patented by Edward Allen Colby in 1900. The first steel made in an induction furnace in United States was in 1907 in a Colby furnace near Philadelphia. First 3 phase furnace was built in Germany in 1906 by Rochling- Rodenhauser.

Characteristics of Induction furnace There are mainly two types of the induction furnaces. They are given below. i) Induction channel furnace – In this furnace induction heating takes place in the channel which is a small and narrow area at the bottom of the main bath. The channel passes through a steel core and the coil assembly. Such type of furnaces are not been used for the steel making. ii) Induction crucible furnace- This type of the furnace is also called coreless induction furnace. It is a refractory lined vessel (Crucible). Its other main components are power supply unit consisting of transformer, inverter and capacitor bank, the charging arrangement, the cooling system for the power supply and furnace coil, process control system and the fume extraction equipment. These furnaces two separate electrical systems; one for the cooling system, furnace tilting and instrumentation and second for the induction coil power. The power for the induction coil is fed from a 3-phase, high voltage, high amperage electrical line. Schematic of this furnace is shown in Fig. 1

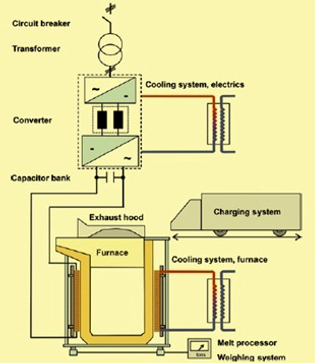

Schematics of an Induction Furnace

The coreless furnace has a fairly simple construction. This basically consists of the refractory lined vessel and the surrounding coil borne by a steel frame. An coreless induction furnace is shown in Fig.2. When AC current flows through the coil, it creates an electromagnetic field which in turn induces eddy currents in the charged material. This charge material gets heated up as per Joule’s law and with further heat the charge material melts. Since the charge material gets melted on its own by the generated heat, the emissions created by other type of furnaces are not found in the induction furnace.

A coreless induction furnace

Bath agitation mechanism The eddy currents induced in the furnace charge and the magnetic induction creates electromagnetic forces. This basically run in a radial direction to the furnace axis and press the melt inward away from the furnace wall. Gravity works against these forces and hence a dome is formed on the bath surface. Additionaly a bath flow is created in the form of two eddy toroids with opposite direction of the turns. This is attributable to the fact that the radial pressure reaches as maximum around halfway up the coil due to the lakage of the field at the coil end.

The power distribution and flow pattern is shown in Fig 3.

Power distribution (left) and flow pattern (right)

The inductive bath agitation firstly leads to a good homogenization of the molten metal with respect to the temperature and chemical composition. It also stir the charge materials and creates optimum heat transfer conditions for melting of the charge materials. Power is supplied to the induction coil through a transformer, a frequency inverter and a capicitor bank. The capacitor bank is to compensate for the reactive power. Further since the induction furnace is switched on via a time ramp, all types of flickers and grid loading through rush currents are avoided. The current fed in by the inverter oscillates with a resonance frequency (within 60% to 110% of the nomonal frequency) and it helps in constant load regulation in a simple manner. Refractory Lining The lining materials for the IF is spinel forming monolithic materials. The requirements of the refractory material is as follows: • Smallest possible wall thickness so that the expenditure on the capacitor bank to control the reactive power can be reduced. This also helps in higher electrical efficiency. • It should not allow the liquid steel to penetrate the refractory wall. In case of penetration into the coil there will be short circuit and a break out. • High mechanical and chemical resistance to withstand the loading caused by the bath agitation. Spinel forming dry masses on MgO and Al2O3 are the lining material preferred for the lining of the IF. These masses have application limits of high temperatures (Over 1750 deg C) along with favorable thermal stability and low infiltration tendency. Production of mild steel by Induction furnace A large tonnage of mild steel is made through IF route in India. While producing this steel, the chemistry of end product is controlled. The chemical analysis of all the input materials is done to have a decision on the charge mix. After completing 50% charging of the input materials, a bath sample is analyzed for chemical composition. Based on the chemical analysis of the bath sample at this stage calculations are made for further additions of the metallics. If the bath sample at this stage shows high percentage of carbon, sulphur and phosphorus then the sponge iron content of the charge is increased. Final bath sample is taken when 80% melting is completed. Based on the analysis of this sample there is another adjustment in the charge. The lower content of carbon in the sample is corrected by increasing the quantity of pig iron/charge iron in the charge. Silicon and manganese in the metal is oxidized by the iron oxide of the sponge iron. Sulphur and phosphorus is also diluted by the sponge iron. Because of use of sponge iron the trace elements in the steel made in the IF remains under control. Comparison with Electric Arc Furnace steel making process The comparison of the operating parameters of induction furnace with those of electric arc furnace is given in Table 1.

Table 1 Comparison of operating parameters with Electric Arc Furnace (EAF)

Sl. No. Subject Unit EAF IF

1 Electrical Energy kWh/t 490-510 540-550 2 Refractory Kg/t 4.1 -4.2 3.4-3.6 3 Electrodes Kg/t 2.4-2.6 Nil 4 Oxygen N Cum/t 15-25 Nil 5 Flux Kg/t 25-28 Nil 6 Dust generation Kg/t 6-12 1-2 7 Noise level dB(A) 95-120 82-86 8 Slag generation Kg/t 65-72 11-15

The induction furnace has the following technical advantages over electric arc furnace. i) Low requirement on the electric grid ii) Relatively cleaner process and lesser environ related expenditure. iii) Higher yields iv) Lower consumption of Ferro-alloys v) No cost on electrodes vi) Lesser capital expenditure vii) Lower space requirement viii) Induction furnace is suitable for charging addition agents any time due to the charateristics of the bath agitation. ix) Has low load and no flicker disturbance x) Automated application in a simple way The disadvantages are i) The requirement of minimal wall thickness of the refractory lining is having risk of crack formation resulting in stoppage of operations. ii) Induction furnaces puts more stringent requirement on the quality of scrap iii) Decarburizing, desulphurizing and dephosphorizing is restricted due to refractory wear. iv) The non metallic component of the charge materials is to be kept under control so that volume of the slag remains under limit and does not have adverse effect on the lining. v) Compared to EAFs, Induction furnaces of very high capacities are not presently available

This article from Mr.Satyendra Kumar Sarna web, thanks for share!
